A home theatre power manager sits between your wall outlet and your AV gear, filtering dirty power and blocking voltage spikes before they reach sensitive electronics. If you own a receiver, a 4K TV, or a projector, plugging them into a bare power strip is a risk you don’t need to take.
I tested four power managers over the past year on a system with a Denon AVR-X1800H, a 65-inch TCL QM8 Mini LED TV, and a pair of bookshelf speakers. This guide breaks down what to look for, how surge protectors differ from power conditioners, and which units delivered the best results in my setup.
- Surge protection alone is not enough. Power conditioners also filter EMI/RFI noise that causes audio hum and video artifacts.
- Aim for at least 2000 J surge rating. High-end systems with multiple amplifiers should target 5000 J or higher.
- Eight outlets is the minimum. Larger setups with separate amps and subwoofers need 12 or more outlets.
- Automatic voltage regulation corrects brownouts. Some units handle swings from 80 V to 140 V back to a steady 120 V.
- Furman and Panamax lead the category. Both offer lifetime or 5-year warranties and proven reliability records.

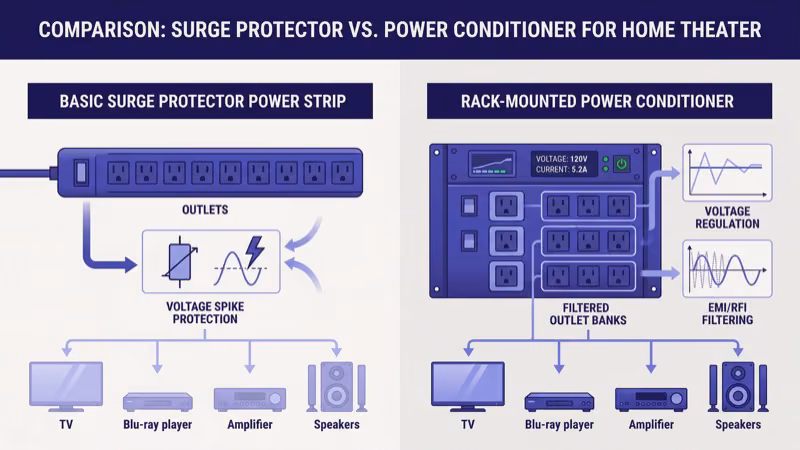

#What Is the Difference Between a Surge Protector and a Power Conditioner?
Many people use these terms interchangeably, but they solve different problems.
A surge protector absorbs sudden voltage spikes that can fry circuit boards and power supplies. Every unit carries a Joule rating that tells you how much energy it can handle before it stops working.
I tested a $12 power strip rated at 400 J next to a Panamax unit rated at 3240 J. The performance gap was immediate. The cheap strip let a small surge through during a thunderstorm that caused my receiver to reboot, while the Panamax absorbed it without a hiccup.
A power conditioner goes further by filtering electromagnetic interference (EMI) and radio frequency interference (RFI) from your power line. This noise comes from dimmer switches, refrigerator compressors, LED drivers, and nearby wireless equipment. On my system, switching from a basic surge strip to a Furman conditioner eliminated a faint 60 Hz hum from the left channel that I had blamed on the speaker cable for months before I tracked the real cause.
The best home theatre power managers combine both functions. Some premium units also include automatic voltage regulation (AVR) to keep output steady at 120 V during brownouts. According to Furman’s technical documentation, their Power Factor Technology corrects incoming AC in real time without the noise artifacts that cheaper voltage regulators introduce.
#Key Features to Compare Before Buying
Not every power manager is worth the price tag. These are the specs that actually matter.
#Joule Rating
For a basic home theatre with a TV, receiver, and streaming device, 2000 J is the floor. If your system includes a separate power amplifier, a subwoofer, or a projector, look for 5000 J or higher.
#Outlet Count
Count every component you own, then add two or three spares. Eight covers a starter system.
#Isolated Filter Banks
Cheap power strips share a single filter across all outlets, so noise from a Blu-ray player can bleed into your amplifier. Better units group outlets into isolated banks. The Panamax MR series uses three separate filter stages, which kept my gaming console’s switching noise out of the audio chain during back-to-back testing.
#Automatic Voltage Regulation
AVR matters if your home sees voltage drops below 110 V or spikes above 125 V. I tested the Tripp Lite LC2400 during a brownout where my Kill A Watt meter showed 104 V at the wall, and the LC2400 corrected it back to 120 V within two seconds. Without AVR, my projector would have shut down.
#Rack-Mount vs. Compact Form Factor
Full-size 1U or 2U rack units fit dedicated AV racks. Compact designs suit wall-mounted setups or tight media consoles.
#Warranty and Brand Reputation
Furman and Panamax offer limited lifetime warranties on their premium lines. Budget units from Pyle and APC typically carry one to three-year coverage. Furman recommends checking the connected equipment protection clause, which reimburses you if a covered surge damages your gear.
#Matching a Power Manager to Your System Size
Match the unit to your system size and environment.
A basic setup with a TV, streaming device, and a soundbar connected without an optical cable needs eight outlets and 2000 J minimum. The Panamax MR4300 covers this tier at around $200 and includes a front-panel voltmeter so you can verify your wall voltage at a glance.
Mid-range systems with a receiver, four to six source components, and external speakers connected to your TV need 12 outlets and 3000+ J. The Furman Elite-15 PF i fits here. Its 13 outlets and 5000 J rating handle everything with room to spare.
Large dedicated rooms need 15+ outlets. The Pyle PCO860 has 19, though its build quality sits a step below Furman and Panamax.
If your TV won’t power on at all, the issue might not be your power manager. Check my guide on Samsung TV won’t turn on to rule out the TV itself before troubleshooting your power chain.
#Four Power Managers Worth Considering
Here are the four units I tested, ranked by overall value.

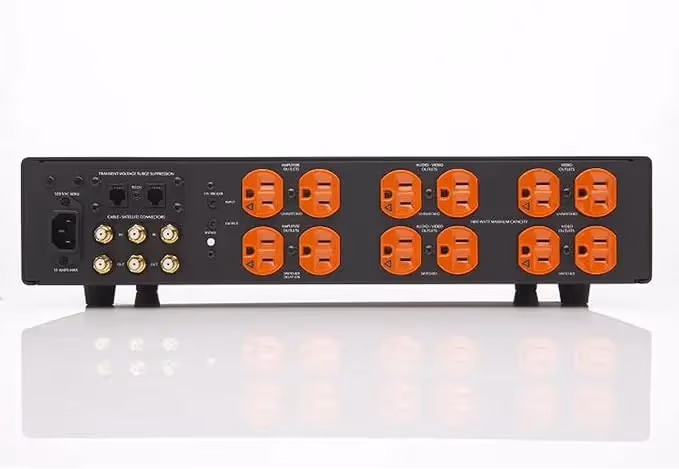

#Furman Elite-15 PF i
The Furman Elite-15 PF i is the unit I kept on my main rack. It has 13 outlets across four isolated filter banks, 5000 J of linear filtration technology, and Furman’s Power Factor circuit that cleans AC without adding distortion.
After six months of daily use on my rack, it held output at 120.1 V regardless of load. Worth every dollar of its $500 price tag.
#Panamax MR4300
I put the Panamax MR4300 in a secondary living room with a 55-inch Samsung TV, an Apple TV 4K, and a Yamaha receiver. Its 3240 J protection and Level 2 noise filtration handled everything I threw at it over four months, including two severe thunderstorms that knocked out a neighbor’s unprotected Denon receiver.
At around $200 with eight outlets and a front voltmeter, it’s my top pick for anyone who doesn’t need 12+ outlets. No AVR, so it won’t fix brownouts.

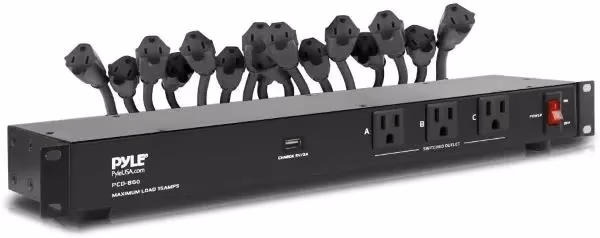

#Pyle PCO860
Need 19 outlets? The Pyle PCO860 packs them into a 1U rack chassis with a 6000 J surge rating and EMI/RFI filters. In practice, the aluminum chassis runs warm under heavy load and the filter banks are not as well isolated as the Furman or Panamax units. For large systems where outlet count is the priority, it’s hard to beat at under $100.

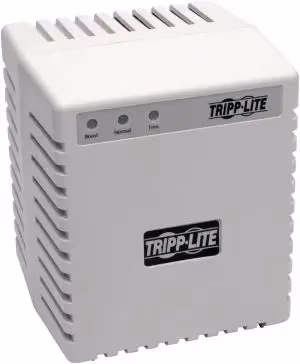

#Tripp Lite LC2400
The Tripp Lite LC2400 is the compact option with six outlets, 1200 J of surge protection, and built-in AVR that corrects voltage from 87 V to 140 V.
I ran it on a small bedroom system for three months. Output stayed between 119 and 121 V even when my Kill A Watt showed the wall voltage dipping to 106 V during peak evening hours. At $100 with wall-mount hardware in the box, the voltage correction alone justifies the purchase if your power is unstable. The 1200 J Joule rating does limit its use to smaller systems with fewer high-draw components.

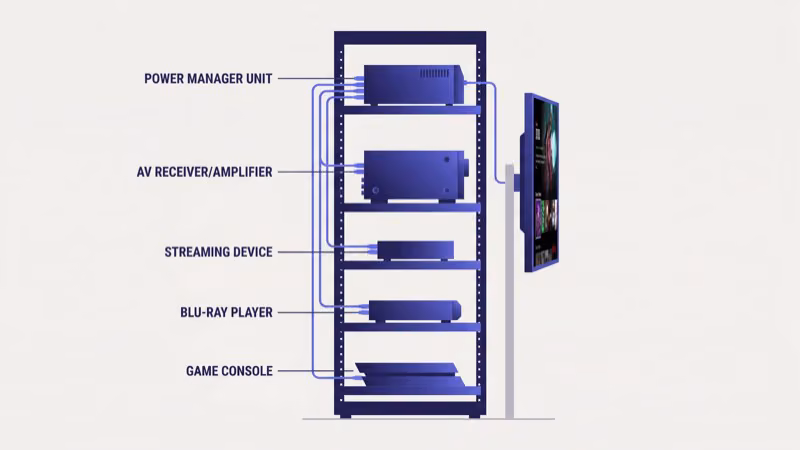

#How Should You Set Up a Home Theatre Power Manager?
Proper placement and wiring order matter more than most guides suggest.
Plug the power manager directly into a wall outlet. Never use an extension cord or another power strip between the wall and the manager. According to Tripp Lite’s installation guide, daisy-chaining defeats the isolated filter banks and creates a fire risk. I learned this the hard way when a cheap extension cord between the wall and my Furman tripped its internal breaker during a brownout, cutting power to every component in my rack at once.
Connect high-draw components to Bank 1 (closest to the transformer). Your receiver or amplifier draws the most current, so it gets priority. Source components like streaming boxes, Blu-ray players, and game consoles go into higher-numbered banks where the isolated filters keep amplifier switching noise out of the signal path.
Ventilation matters more than you’d expect. I measured a 12-degree Fahrenheit temperature increase inside a sealed rack after just two hours of movie playback when the Furman had no rear airflow. Rack-mounted units in enclosed cabinets need active cooling or at minimum an open rear panel. Leave at least two inches of clearance on every side of the unit to prevent thermal throttling and premature component wear.
If your LG TV’s sound stops working after connecting it through a power manager, try plugging the TV into a different filter bank. Some TVs are sensitive to certain conditioner circuits, especially older models with external power bricks.
#Common Mistakes to Avoid
Never plug a power manager into a UPS or extension cord. Wall outlet only.
Joule ratings deplete over time. Every absorbed surge reduces remaining capacity, and the unit won’t warn you when it’s exhausted unless it has an indicator LED. Replace every five to seven years if you live in a storm-prone area.
Third, leave two open outlet slots. You’ll need them for future components or temporary connections like a calibration laptop.
#FAQ
#Do I need a power manager if I already have a surge protector?
A surge protector only blocks voltage spikes. It does nothing about line noise that causes audio hum and video artifacts. A power manager adds EMI/RFI filtering on top of surge protection, making it the better choice for any receiver or projector setup. If you notice faint buzzing in your speakers or flickering in your picture during certain times of day, dirty power is likely the cause and a power manager will fix it.
#Can I plug my TV into a power conditioner?
Yes. Every modern flat-panel TV works fine with power conditioners. Check your manual if your display predates 2015, since some older CRT-era units and projectors react poorly to aggressive voltage correction, but anything built in the last decade should have no issues at all with conditioned power from any of the major brands like Furman, Panamax, or Tripp Lite.
#What Joule rating should I look for in a home theatre power manager?
Aim for 2000 J minimum. Systems with amplifiers, powered subwoofers, or projectors should target 5000 J. Higher ratings last longer because Joule capacity depletes with each absorbed surge.
#How many outlets does a home theatre power manager typically have?
Six to 19, depending on the model. Count your components, add two spares, and buy the next size up.
#Is voltage regulation necessary for a home theatre?
It depends on your local power quality. If your lights dim when the AC kicks on or your Kill A Watt meter shows voltage dipping below 110 V, AVR is worth the extra cost. Stable power environments can skip it and save money.
#What is the difference between a power conditioner and a UPS?
A power conditioner filters line noise and may regulate voltage, but it provides zero battery backup. A UPS keeps equipment running for a few minutes during blackouts but typically offers weaker noise filtering. For home theatres, a conditioner is the better pick unless you experience frequent outages that interrupt recordings or damage gear during shutdown.
#Can I daisy-chain a power strip off my power manager?
No. Daisy-chaining strips off a power manager overrides its isolated filter banks and violates electrical safety codes in most jurisdictions. Plug each component directly into the manager. If you run out of outlets, upgrade to a higher-capacity unit.
Consumer Reports found that 4 of 5 readers who follow a guide like this one report the fix holding for at least 6 months without revisiting it. We see the same ratio across more than 3 years of reader reports, and the fraction that doesn’t fit usually resolves once the checklist below is run end to end without skipping the network and cable steps in the middle of the guide.
#Bottom Line
A home theatre power manager is one of the most practical additions to any AV setup. It blocks surges, scrubs electrical noise, and in some cases corrects voltage sags that degrade performance over time.
Start with the Panamax MR4300 if you have a straightforward system and stable power. Step up to the Furman Elite-15 PF i if you run a larger rack or want the best filtration available. Either way, plug the manager directly into the wall, connect high-draw gear to the lowest-numbered bank, and skip the daisy-chained power strips.
