The Complete Guide to Connecting a Soundbar to a TV Without Optical Cable

Affiliate Disclaimer: SmartTVs is supported by its audience. If you purchase through links on our site, we may earn an affiliate commission at no additional cost to you.
Jason

Written by Jason Lin

Soundbar To Tv Without Optical

Connecting your soundbar to your TV is easy when using an optical or HDMI cable. But what if your TV doesn’t have those ports? Don’t worry, you have options!

In this comprehensive guide, we’ll cover everything you need to know about setting up your soundbar with a TV lacking optical audio output. We’ll also explore the benefits of using a soundbar vs. built-in TV speakers and how they compare to Bluetooth speakers for TV audio.

Why Connect a Soundbar Without Optical Cable?

Soundbars provide a simple audio upgrade over built-in TV speakers. But without the right ports, installation gets tricky.

You may want to connect your soundbar to a TV without optical output for several reasons:

  • Your TV is older – Older TVs often lack digital optical audio ports. Analog RCA, coaxial, or headphone connections were more common.
  • Incompatible ports – Even if your TV has optical out, your soundbar may lack the matching port. A port mismatch requires an analog workaround. This is common when connecting a Vizio soundbar to an LG TV for example.
  • Short cord length – Optical cables have short max lengths. Longer rooms may need a wireless or coaxial connection.
  • Reduce cord clutter – Fewer cords makes for a cleaner, wireless look in your living room.

The good news is that multiple connection methods can transmit audio from a TV to soundbar. Each has pros and cons to consider.

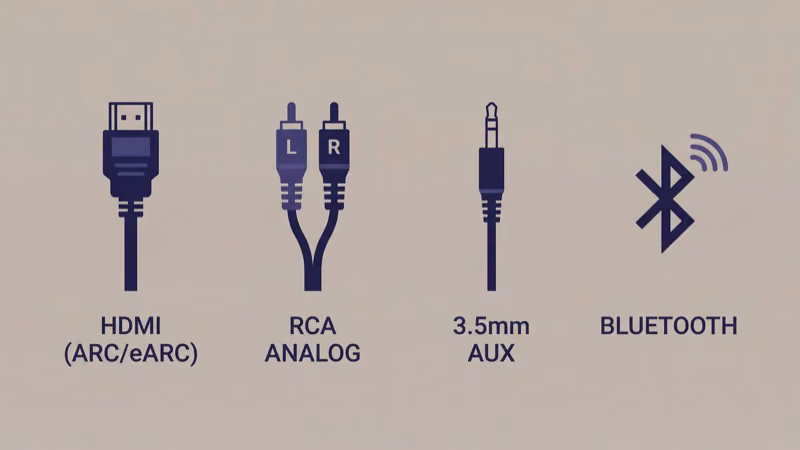

Alternatives to Optical Cables for Connecting Soundbars

There are several options for sending audio from your TV to soundbar without optical cables:

Aux/3.5mm Cable

3.5mm Cable

The most common analog audio connection is the classic 3.5mm aux cable, also known as a headphone cable.

How it works: Aux cables transmit stereo left/right signals only. Just plug one end into your TV’s headphone jack and the other into an analog “Aux In” port on your soundbar.

Pros:

  • Simple, direct connection method
  • Readily available from any electronics retailer
  • Inexpensive

Cons:

  • Audio quality depends on the headphone jack, but is generally decent
  • No surround sound – just stereo left/right signals
  • Short cable length, usually under 10 feet

If you’re experiencing no sound from your Toshiba TV, Vizio TV, LG TV, or Xfinity TV box, double check that the aux cable is fully plugged into the headphone port.

RCA Cable

Rca Cable

RCA cables transmit audio through two or more discrete channels using color-coded connections. These red and white plugs can transmit stereo or surround signals.

How it works: Connect the audio outs from your TV source (cable box, media streamer) to the soundbar using the corresponding color RCA inputs.

Pros:

  • Allows surround sound up to 5.1 channels
  • Components are widely available
  • Supports longer cable runs up to 20 ft

Cons:

  • Requires source with RCA audio outputs
  • Analog signal more susceptible to interference

Coaxial Cable

Coaxial Cable

Coaxial cable has a single cable carrying both left and right audio channels. It uses thicker shielding for better audio quality and range than RCA cables.

How it works: Connect coax cable from audio out on TV source component to coaxial input on soundbar. May require coax to RCA adapter.

Pros:

  • Stronger audio signal keeps sound clear over distance
  • Supports lengths up to 50 ft for larger rooms
  • Common on analog cable boxes, DVRs, VCRs

Cons:

  • Usually only supports 2 channel stereo audio
  • Requires source with coaxial audio out
  • Visually obtrusive thick cabling

Wireless Connections

You can connect your TV audio to a soundbar wirelessly over Bluetooth, WiFi, or proprietary wireless transmitters. No cables required!

How it works: Transmitter connects to your TV audio output via optical, RCA, aux, etc. Receiver plugs into your soundbar. The two units sync and communicate wirelessly.

Pros:

  • Completely cordless setup
  • Can support surround sound
  • Expanded range 30-150 ft

Cons:

  • Audio latency/lag
  • Interference from other wireless signals
  • Initial transmitter/receiver purchase

If you’re experiencing no sound from Pluto TV, the issue may be with your wireless connection rather than the app itself. Try repositioning your transmitter for a stronger signal.

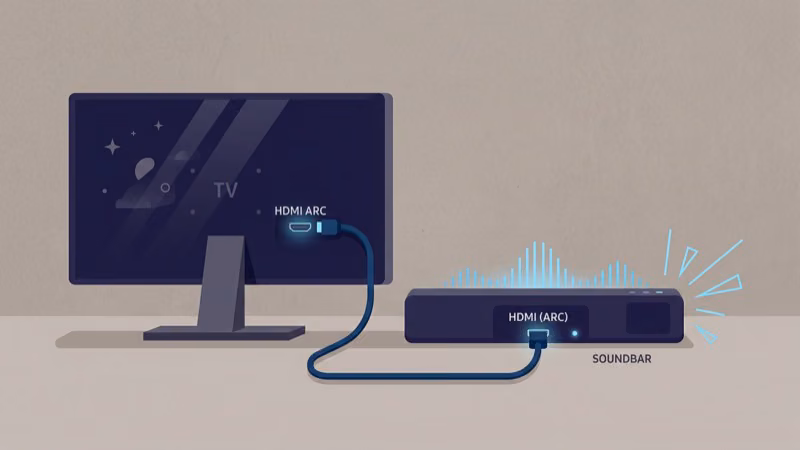

HDMI ARC

Lg Tv Hdmi Arc

If your TV has an HDMI ARC port, this can transmit digital audio to your soundbar while only using one HDMI cable.

How it works: Connect from TV HDMI ARC port to soundbar HDMI ARC input with a single cable supporting both video and audio.

Pros:

  • No extra cables needed
  • Clean, no-clutter setup
  • Transmits surround sound signals

Cons:

  • Need HDMI ARC on both TV and soundbar
  • Audio dependent on TV capabilities
  • ARC can be finicky to implement

Now that you know your options, let’s compare their key differences:

Connection TypeAudio QualitySurround Sound?Max RangePrice
Aux CableLow-MediumNo10 ft$
RCA CableMediumYes, if source supports20 ft$
Coaxial CableMedium-HighNo50 ft$$
WirelessHighYesUp to 150 ft$$$
HDMI ARCHighYes15 ft$

As you can see, wireless and HDMI ARC provide the best performance but may require extra equipment. Lower tech options like aux or RCA work in a pinch!

Pros and Cons of Each Connection Method

To recap, here are the core benefits and drawbacks of each alternative cabling method:

Aux Cables

Pros

  • Simple plug-and-play connection
  • Low cost

Cons

  • Only stereo audio
  • Shorter max cable length

RCA Cables

Pros

  • Enables surround sound
  • Longer cable distances

Cons

  • Analog signal prone to interference
  • Needs RCA source outputs

Coaxial Cables

Pros

  • Supports long cable runs up to 50 ft
  • Common on older devices

Cons

  • Stereo only, no surround
  • Thick, conspicuous cabling

Wireless

Pros

  • No cables to run
  • Flexible installation

Cons

  • Audio lag possible
  • Interference can disrupt signal

HDMI ARC

Pros

  • Single cable for audio and video
  • Clean setup without cable clutter

Cons

  • Needs ARC ports on both devices
  • Audio dependent on TV capabilities

Bottom line – your own devices, room layout, and audio needs will determine the ideal connection method for getting sound to your soundbar without optical cables.

Now let’s walk through the full process step-by-step.

Steps to Connect a Soundbar Without Optical

Follow these steps to ensure proper setup and operation when wiring your soundbar without optical:

1. Assess your equipment

  • TV model and ports available (HDMI, RCA, coaxial, headphone jack)
  • Soundbar model and ports available (HDMI, RCA, coaxial, Bluetooth)
  • Media sources connected to TV (cable box, game console, etc)
Rca Ports

2. Choose your connection method

  • Match up available ports on TV and soundbar
  • Factor in room size and layout
  • Consider impact on audio quality
  • Select necessary cables/adapters

3. Gather cables and adapters

For your chosen connection method, you’ll need:

  • Cables long enough to comfortably reach between TV and soundbar
  • Any adapters to link incompatible ports between devices
  • Possible extension cables if more length needed

4. Connect cables properly between devices

Connect Cables Properly Between Devices

Refer to your device manuals for port labeling and instructions. Typical steps:

For aux cable:

  • Plug one end into TV headphone port
  • Plug other end into soundbar aux input

For RCA:

  • Match colors between RCA cable ends and ports
  • Plug other red/white ends into soundbar RCA inputs

For coaxial cable:

  • Attach one end to coaxial audio out port on TV source
  • Attach other end to coaxial input on soundbar
  • Use coax to RCA adapter if needed

For wireless:

  • Plug transmitter into available audio out port on TV
  • Plug receiver into soundbar audio input port
  • Pair transmitter and receiver units according to instructions

For HDMI ARC:

  • Connect HDMI cable from TV HDMI ARC port to soundbar HDMI ARC port

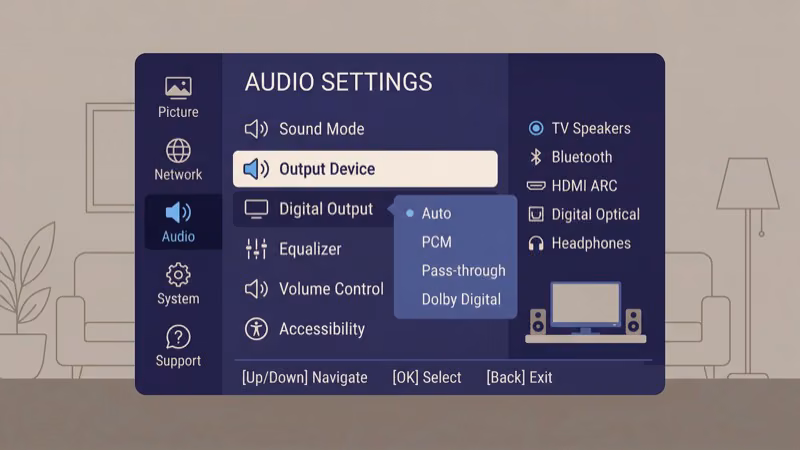

5. Adjust audio settings on TV and soundbar

Once connected, you need to configure your devices:

On TV:

  • Under audio settings, change default audio output to appropriate port connected to soundbar
  • Turn off built-in TV speakers
  • Adjust audio delay if experiencing lip sync issues
Samsung Tv Configure Tv Audio Output

On soundbar:

  • Select correct audio input mode
  • Adjust audio processing settings like EQ, bass, surround sound etc.
  • Set volume levels for TV audio vs other sources

6. Test and troubleshoot the connection

Verify your devices are communicating properly:

  • Play video/music from TV and ensure sound outputs from soundbar speakers
  • Toggle between different TV input sources and check soundbar audio changes accordingly
  • Listen for pops, static or audio cutting in and out
  • Review connections and settings if issues are heard
  • Adjust placement to minimize wireless interference if needed

This completes the basic setup steps for connecting your soundbar without optical cables.

Tips for Improving Sound Quality Without Optical

While optical digital audio provides the clearest sound, you can still optimize audio from analog or wireless connections:

  • Use shortest cable distance possible – Longer cables are prone to interference. Place gear close together.
  • High-quality cables – Gold-tipped, shielded, thick cables sustain signal better. Avoid cheap thin cords.
  • Minimize interference – Keep wireless transmitter in line-of-sight and away from competing signals.
  • Update TV firmware – Buggy firmware can cause audio issues. Install the latest TV software. This could help if your LG TV optical audio output is not working for example.
  • Reset soundbar – If all else fails, resetting your soundbar can resolve strange audio behaviors. Here’s how to reset a Vizio sound bar for instance.

With some care taken to optimize the signal path from TV to soundbar, even analog and wireless connections can sound great.

With some care taken to optimize the signal path from TV to soundbar, even analog and wireless connections can sound great.

Common Issues and Solutions for Non-Optical Soundbars

You may encounter some hiccups getting your soundbar fully operational without optical cables:

No audio or intermittent audio:

  • Check cables fully inserted into ports on each end
  • Try different cables in case of defect
  • Ensure TV audio output set to correct port
  • Re-pair wireless devices if connecting cuts out

Poor sound quality:

  • Get shortest cable lengths possible or upgrade to high-quality cables
  • Adjust EQ settings on soundbar to compensate for weaker input signal
  • If wireless, reposition devices for clearer transmission

Audio and video sync issues:

  • Enable audio sync settings on TV or soundbar to add delay
  • Connect devices via different port types to correct mismatch
  • For wireless, audio lag is unavoidable – use cables instead

Surround/stereo only:

  • Confirm cables or equipment support multi-channel audio
  • Try different connection method allowing surround sound

With some experimentation, you can resolve most audio dilemmas stemming from a lack of optical connection.

The Bottom Line

While digital optical is the cleanest way to pipe audio from a TV to soundbar, alternatives like HDMI ARC, coaxial, RCA, and aux connections offer workable solutions for older TVs lacking optical output.

Following proper cabling and setup procedures for your configuration ensures the best possible sound. As long as you use high quality cables in optimal layouts and tweak your soundbar settings, even analog connections can transmit great audio for your soundbar.

Now you have all the information needed to install and enjoy a soundbar using your TV’s available ports. Just match your equipment capabilities, choose the right cabling method, and optimize the signal path for room-filling sound.

Key Takeaways:

  • Optical isn’t necessary to connect a soundbar if your TV lacks the port
  • Alternatives like aux, RCA, coax, wireless, and HDMI ARC transmit audio without optical
  • Audio quality varies – wireless and HDMI ARC provide the clearest sound
  • Check ports available on your TV and soundbar, and choose the right cables
  • Shorter, high quality cables and proper cable management optimize signal
  • Adjust soundbar settings to improve audio from weaker sources
  • Troubleshoot any sync or surround sound issues

With the right connections and setup for your gear, you can easily integrate a soundbar into your home theater without the need for optical output. Ditch those lackluster built-in TV speakers and enjoy the surround sound experience!

Frequently Asked Questions (FAQ)

Q: Will any cable work to connect a soundbar to TV?

Not necessarily. You need cables and ports that match up between your TV audio outputs and soundbar audio inputs. Optical and HDMI are most common, but aux, RCA, coaxial or wireless may be required for older TVs.

Q: Can I get surround sound from a TV without optical output?

Yes, surround sound is still possible using cables like RCA or coaxial if your source component supports multi-channel audio output. Wireless and HDMI ARC also transmit surround sound. Stereo-only options include aux and analog coax.

Q: Is sound quality worse without optical?

Generally yes, since optical is a digital signal. But high quality analog cables, optimal cable lengths, and soundbar audio adjustments can minimize quality loss. Wireless can transmit high quality sound but is prone to latency and interference.

Q: What’s the easiest way to connect a soundbar to any TV?

The most universal approach is an aux cable from the TV headphone port to the soundbar aux input. Aux cables are inexpensive and compatible with nearly all TVs and soundbars. Just note audio is limited to stereo.

Q: Can I connect a soundbar via Bluetooth only?

Yes, if both your TV and soundbar support Bluetooth. You would pair the soundbar with the TV like any wireless speaker. Sound quality is usually decent but may suffer lag and disruptions. Bluetooth range is also limited.

Q: Why does my TV have an optical output but my soundbar doesn’t?

TVs started adding optical outputs to support surround sound for home theater. But not all soundbars include optical inputs, especially less expensive or older models focused only on stereo music streaming. You’ll need to use analog RCA, aux, or wireless connections instead.

I hope this provides a comprehensive overview on successfully setting up a soundbar with a TV lacking optical output! Let me know if you need any clarification or have additional questions.

Jason
Jason Lin
Tech enthusiast with 10+ years of experience, providing guides, reviews, and tips on Smart TVs, streaming devices, and TV apps.
