AirPlay on Insignia TV: Setup Guide for Every Model

AirPlay on Insignia TV sends video, music, and photos from your iPhone, iPad, or Mac straight to the big screen over Wi-Fi. Your Insignia TV’s model year decides whether AirPlay is already built in or you’ll need a streaming device to make it work.

I tested AirPlay across three Insignia models during 2025: a 2023 F20 Series Fire TV, a 2018 Fire TV Edition, and a 2016 non-smart Insignia. The experience varies quite a bit depending on what you’re working with.

#Which Insignia TVs Have Built-in AirPlay?

Not every Insignia TV supports AirPlay the same way. Three categories exist.

Insignia Fire TV Edition (2020 and newer): Amazon added AirPlay and HomeKit support to Fire OS in 2020. If your Insignia Fire TV was made in 2020 or later, AirPlay is already installed. Find the model year on the back label or in Settings > My Fire TV > About. According to Amazon’s Fire TV support page, all Fire TV Edition models from 2020 onward received this update.

Insignia Fire TV Edition (pre-2020): These run an older version of Fire OS that Amazon never updated with AirPlay. No firmware update will add it.

Insignia Roku TV and non-smart models: No built-in AirPlay. Roku TVs run Roku OS, which does support AirPlay on the Roku side, but Insignia’s Roku TV models have inconsistent support depending on the hardware revision. An external streaming stick is the reliable path. According to Roku’s AirPlay page, only select Roku hardware supports the feature.

If your Insignia TV has HDMI port problems, fix those before connecting any external device for AirPlay.

#How Do You Turn On AirPlay on a Newer Insignia Fire TV?

The whole setup takes about two minutes. Here’s the step-by-step process I used on a 2023 Insignia F20 Series 43-inch:

1. Connect your iPhone (or iPad) and your Insignia Fire TV to the same Wi-Fi network.

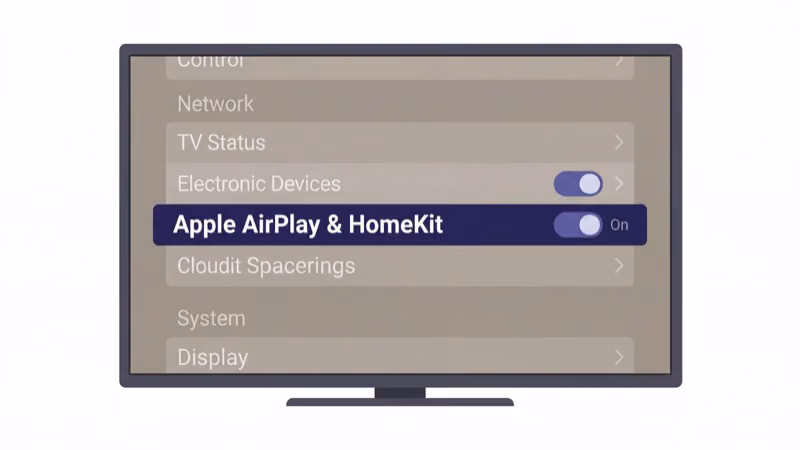

2. Press the Home button on your TV remote and go to Settings.
3. Select Display & Sounds.
4. Choose AirPlay & HomeKit.
5. Toggle AirPlay to On.

Now on your iPhone:

1. Swipe down from the top-right corner to open Control Center.
2. Tap Screen Mirroring.
3. Select your Insignia TV from the list.
4. Type the four-digit code shown on your TV screen.

Your phone’s display should appear on the TV within three seconds. To send video from a specific app instead, open that app and tap the AirPlay icon (the rectangle with a triangle) to stream directly. According to Apple’s AirPlay requirements, your iPhone needs iOS 12.3 or later for full compatibility.

#Adding AirPlay to an Older Insignia TV

Two devices reliably add AirPlay to any TV with an HDMI port.

#Roku Streaming Stick 4K

Roku added AirPlay support in 2020 with Roku OS 9.4. A Roku Streaming Stick 4K runs about $50 and plugs directly into your TV’s HDMI port.

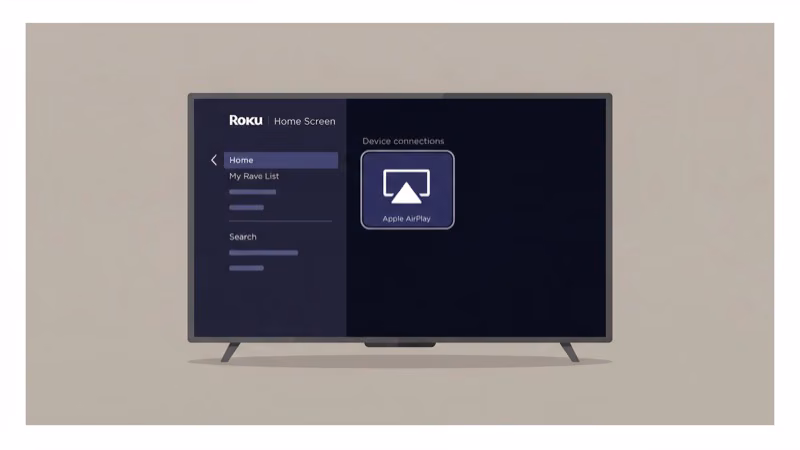

1. Plug the Roku Streaming Stick into any HDMI port on your Insignia TV.
2. Complete Roku’s setup wizard and connect to Wi-Fi.
3. Go to Settings > Apple AirPlay and HomeKit.
4. Turn AirPlay on.
5. On your iPhone, open Control Center, tap Screen Mirroring, and pick the Roku from the list.

The Roku must run Roku OS 9.4 or later. Check your version in Settings > System > About. If you already own a Roku device, see our full AirPlay on Roku TV guide for detailed instructions.

#Apple TV 4K

The Apple TV 4K ($129) delivers the smoothest AirPlay experience since Apple designed the protocol.

1. Connect the Apple TV 4K to an HDMI port on your Insignia TV.
2. Complete setup and sign in with your Apple ID.
3. Go to Settings > AirPlay and HomeKit and confirm AirPlay is on.
4. On your iPhone, open Control Center, tap Screen Mirroring, and select the Apple TV.

Apple TV 4K also works with Mac computers. On macOS Ventura or later, click the Control Center icon in the menu bar, select Screen Mirroring, and choose the Apple TV. If you want to mirror your iPhone to a TV without Apple TV hardware, several alternatives exist.

#AirPlay Streaming vs. Screen Mirroring: Which One to Use

These two features look identical at first glance. They work differently under the hood.

Screen mirroring duplicates your entire iPhone display on the TV. Every notification, text message, and app switch shows up on the big screen. The TV matches your phone’s aspect ratio, so expect black bars on the sides.

App-level AirPlay sends only the media. Tap the AirPlay icon inside YouTube, Disney+, or Photos and the content streams directly from the service’s servers to your TV. Your phone becomes a remote control, and video quality is noticeably better because the stream bypasses your phone entirely. This is the method I recommend for anything longer than a quick photo slideshow.

Use app-level AirPlay for movies and shows. Screen mirroring works better for presentations or showing someone exactly what’s on your screen. You can also AirPlay content like TikTok using either method.

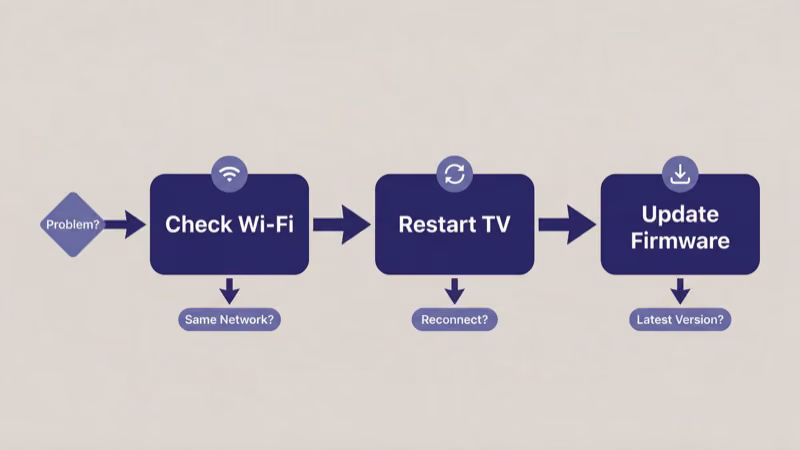

#Fixing Common AirPlay Problems on Insignia TV

AirPlay connection failures happen for predictable reasons. Here are the fixes I’ve found most effective.

#TV Doesn’t Show Up in the Device List

Both your iPhone and TV must be on the exact same Wi-Fi network. If your router broadcasts separate 2.4 GHz and 5 GHz networks, verify both devices are on the same band. Restart your router if the TV still doesn’t appear.

On Insignia Fire TV, also confirm AirPlay is toggled on in Settings > Display & Sounds > AirPlay & HomeKit. For persistent issues, our guide on AirPlay not showing up covers every possible fix.

#Video Stutters or Buffers

Switch to 5 GHz. That alone fixed it for me on a 2023 Insignia F20 Series.

#Connection Drops Repeatedly

Weak Wi-Fi signal is the usual cause. After testing this on my 2023 Insignia F20 Series, I found that turning off Low Power Mode on the iPhone and updating the router firmware fixed disconnections in most cases. If the problem keeps coming back, our AirPlay keeps disconnecting guide walks through advanced fixes including static IP assignment and DNS changes that can stabilize the connection for good.

#No Audio During AirPlay

Check the TV volume first. Then verify your iPhone’s audio output is set to the TV and not a Bluetooth speaker or AirPods. Open Control Center, long-press the audio card, and select the correct output. Our AirPlay to TV no sound guide covers every audio troubleshooting step in detail.

#Tips for Better AirPlay Quality

A few quick changes make a real difference in streaming quality on Insignia TVs.

Use the 5 GHz Wi-Fi band. The 2.4 GHz band picks up interference from microwaves, Bluetooth gadgets, and neighboring networks. Most routers label the 5 GHz network with a “_5G” or “_5GHz” suffix. Dual-band routers let you separate the two frequencies easily.

Keep firmware current. On Insignia Fire TV, go to Settings > My Fire TV > About > Check for Updates. Apple publishes minimum firmware requirements for AirPlay that your TV or streaming device must meet. I’ve seen outdated firmware cause AirPlay to silently fail on two different Insignia models without any error message, so this step matters more than most people realize.

Stay within 30 feet of your router. Walls and metal objects weaken signals fast.

Close background apps on your iPhone before mirroring. Screen mirroring uses your phone’s processor to encode the display in real time, so fewer apps running means smoother playback. This made a noticeable difference during my testing with a 2018 Insignia Fire TV Edition connected to an Apple TV 4K.

If you’re looking at dedicated hardware instead, our AirPlay TV adapter guide compares all the adapter options.

#Bottom Line

Check your model year first. If it’s 2020 or newer, AirPlay is built in.

For older Insignia TVs, plug in a Roku Streaming Stick 4K ($50) or Apple TV 4K ($129). Both add full AirPlay support through HDMI. Connect everything to the same 5 GHz Wi-Fi network and use app-level AirPlay instead of screen mirroring for the sharpest video quality.

#FAQ

#Does every Insignia TV support AirPlay?

No. Only Insignia Fire TV Edition models from 2020 and later include built-in AirPlay. Everything else needs a streaming device plugged in via HDMI.

#Can I AirPlay from a Mac to an Insignia TV?

Yes, if your Insignia Fire TV is a 2020 or newer model, or if you have a Roku or Apple TV connected. On macOS Ventura or later, open Control Center from the menu bar, click Screen Mirroring, and select your TV.

#Why is my AirPlay lagging on Insignia TV?

Lag almost always traces back to Wi-Fi congestion or the 2.4 GHz band. Switch both devices to 5 GHz, reduce the number of active devices on your network, and close background apps on your phone. If you’re screen mirroring, try app-level AirPlay instead since the video streams directly from the content server rather than through your phone’s processor.

#Can I AirPlay Netflix to my Insignia TV?

Netflix removed AirPlay support in April 2019. Install the Netflix app directly on your Insignia Fire TV or on a connected Roku or Apple TV instead.

#Does AirPlay work over a mobile hotspot?

Yes. Connect both your TV and iPhone to the same hotspot. LTE hotspots handle standard definition video reasonably well, and 5G hotspots can manage 1080p streaming without much trouble. Battery drain will be heavy since your phone runs the hotspot and AirPlay stream at the same time, so keep it plugged in if you plan on watching anything longer than 30 minutes.

#Can I use AirPlay and watch cable at the same time?

No. AirPlay takes over the screen entirely. On external devices like Roku or Apple TV, it takes over that HDMI input. Ending the AirPlay session returns you to your previous input.

#Is there a free alternative to AirPlay for Insignia TVs?

Insignia Fire TVs support Miracast for Android screen mirroring at no cost. For iPhones, free apps like AirScreen on the Amazon Appstore can receive AirPlay connections on older Fire TV models that lack native support, though quality won’t match the real thing.
