How to Fix Horizontal Lines on Toshiba TV Screens – The Ultimate Guide

February 19, 2024

Affiliate Disclaimer: SmartTvs is supported by its audience. If you purchase through links on our site, we may earn an affiliate commission at no additional cost to you!

Distracting horizontal lines randomly showing up on your Toshiba television can certainly be annoying and ruin your viewing experience. But don’t worry – in most cases, these frustrating lines can be fixed with some easy troubleshooting once you know where to look.

As a long-time technician specialized in repairing TVs, I’ve seen all kinds of horizontal, vertical and rolling line issues caused by faulty cables, aging components, software glitches and more. The good news is, many of these Toshiba TV problems have straightforward solutions if you systematically isolate the root cause.

In this ultimate guide, I’ll take you through the 14 most common fixes for horizontal lines on Toshiba televisions. We’ll start with quick checks and software resets before moving to replacing cables and TV components.

By the end, you should have confidence troubleshooting precisely why lines are showing on your Toshiba screen, as well as the solution to banish them for good. Let’s get cracking!

What Causes Horizontal Lines on Toshiba TVs?

Before jumping into the fixes, it helps to understand what typically causes visible lines across Toshiba television screens:

Faulty or Loose Video Cables

Issues with damaged HDMI or antenna cables can show up as wavy horizontal artifacts and distorted pictures that appear like lines. Similarly, loose video connections between devices, ports and the TV can contribute to lines when input signal integrity is compromised.

Dust and Debris Buildup

A surprisingly common source of TV display issues is plain old dust! Built up dust, dirt and debris – especially around ribbon cables and PCB components inside the TV chassis – can show up as lines and scrambled pictures. Good old spring cleaning does wonders.

Software Glitches & Updates

Like any modern smart TVs filled with code, software bugs or outdated firmware on older Toshiba models can also be the surprising culprit behind horizontal lines. Resetting and updating the TV software often resolves these unpredictable issues.

Backlight Failures

The LED strips that light up LCD televisions from behind the actual pixel layer are arranged vertically in columns behind the screen. When some LEDs die or disconnect, obvious bright lines show across the display.

Burned-In Displays

Displaying the same 24/7 news or sports channels can literally burn their fixed graphics into your screen through pixel degradation, leaving faint horizontal lines at those locations long after you change the channel.

T-Con Board Failure

The timing controller (T-Con) board coordinates everything being shown on your display. When this crucial component starts failing, scrambled lines and distortions commonly appear as it loses signal coordination ability.

Loose Ribbon Cables

The flexible ribbon cables that connect key components like the T-Con board to the LCD screen are prone to work loose over years of heating and cooling cycles. Loosened video signal connections then cause all kinds of visual corruption.

Nearby Electromagnetic Interference

Lastly, interference from nearby electronic devices through electromagnetic waves can disrupt digital video signals. This causes glitches like temporary buzzing lines and blocky pictures under the right conditions.

So in summary – horizontal lines on your treasured Toshiba television could stem from wiring problems, hardware failures, software issues or environmental interference.

Now let’s go through how to troubleshoot and fix the most common causes, starting from the basics before opening up your TV or ordering replacement parts.

14 Fixes for Horizontal Lines on Toshiba TVs

Below I outline the top 14 fixes to try when faced with the dreaded lines on your Toshiba TV screen:

1. Check Video Input Connections

Since improperly connected devices often cause these symptoms, this is an easy fix to try first:

  • Inspect all video and antenna cables for damage
  • Reseat loose HDMI, component, coaxial and AV connectors at both ends
  • Try different cables if available to test signal integrity
  • Directly connect devices to TV ports to isolate issues
Tcl Tv Hdmi

By methodically checking all video input connections you can identify and resolve dodgy cables contributing to those lines.

2. Perform Factory Reset on Toshiba TV

Resetting the television fully erases any corrupted settings, glitches or outdated firmware:

  • Select Factory Reset function from Settings menu
  • Confirm when prompted to wipe OS and data
  • Allow TV to fully reboot and reconfigure
Android Tv Factory Reset

This factory data reset often resolves software-based display issues and upgrades firmware on older models. Reconfigure your inputs and apps after resetting.

3. Power Cycle the Toshiba Television

Simply turning a malfunctioning TV off and on rarely clears underlying issues – so instead, force a cold reboot:

  • Unplug TV power cable from electrical outlet
  • Wait at least 60 seconds (2 minutes even better)
  • Reconnect power cable to reboot TV completely
Unplug The TV

This power cycling forces all components to fully discharge and restart fresh. If the issue persists, take a look at troubleshooting Toshiba TV red light blinking and Toshiba TV flickering issues as well.

4. Check for Screen Burn-In

Prominent 24/7 channel logos and static scoreboard overlays can get “burned in” to pixels with long term display – look closely for their faint outlines:

  • Display burn-in test pattern to easily check
  • Run pixel refresher videos overnight
  • Vary content shown to avoid further burn-in

Use varied content instead of prolonged static images to minimize screen burn going forward. Modern TVs include pixel shifting to reduce this risk.

5. Replace Faulty HDMI Cables

Damaged or corroded HDMI connectors can cause all sorts of analogue video noise and signal loss:

Hdmi Cable

Swapping out suspect HDMI inputs for fresh wiring usually resolves lines from cable issues. See more on fixes for Toshiba TV HDMI problems.

6. Open Case & Reseat Ribbon Cables

Loose internal wiring is harder to spot – carefully inspect:

  • Open rear case to access control boards
  • Locate & detach corrosion-prone ribbon cables
  • Clean ribbon cable connectors if needed
  • Re-seat each cable firmly

Doing so reforms flaky video signal connections from internal T-Con boards to the screen itself that generate lines.

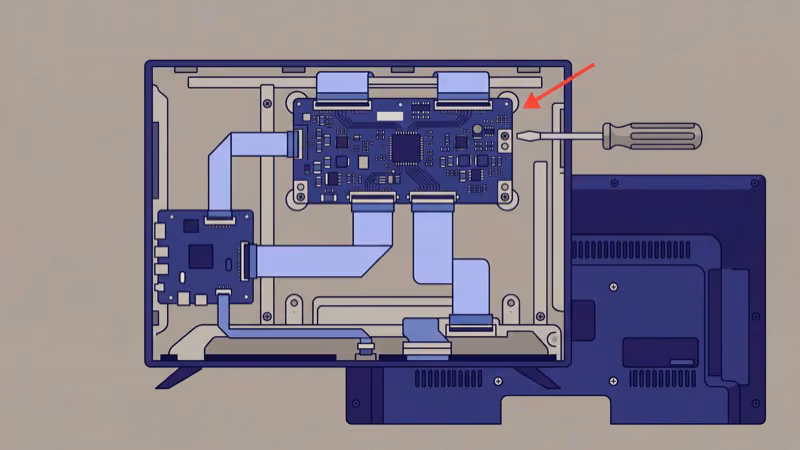

7. Replace Failing T-Con Board

The critical T-Con component manages screen signals – when it fails, chaos ensues:

  • Order correct replacement T-Con for the TV
  • Open chassis and locate existing T-Con PCB
  • Swap in replacement after disconnecting ribbons
  • Test operation before resealing case

Faulty T-Cons often display horizontal lines among other issues – replacement restores order.

8. Upgrade Outdated Software

Some models like discontinued Toshibas still receive critical firmware updates:

  • Select Update option from Settings to download
  • Or visit Toshiba support site on a PC to get files
  • Apply updates via USB stick – avoid power disruption
Plug Usb Into Tv

Updated software rectifies bugs that trigger display communication failures.

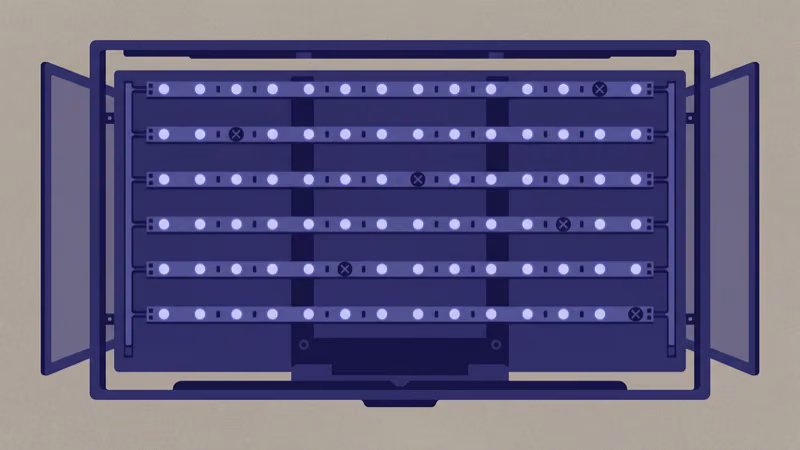

9. Replace Backlight LED Strips

The precisely arranged LED backlights fail over time – replace strips:

  1. Order correct LED array for exact TV model
  2. Carefully open display and remove old strips
  3. Install replacement backlights as per guide
  4. Reconnect delicate display cables before reassembly

This restores lighting uniformity lost by dead LED zones causing bright lines on screen. It’s fiddly work best left to technicians.

10. Attempt T-Con Ribbon Repairs

Rather than replace the entire T-Con board, targeted repairs may work:

  • Note which screen regions show lines then identify matching ribbon cable
  • Carefully unplug & reseat that specific ribbon
  • Inspect ribbon for damage possibly causing issues
  • Replace only faulty ribbon if needed based on symptom region

Sectioned ribbon fixes avoid replacing the entire T-Con module. Accurately mapping ribbons and lines guides troubleshooting.

11. Rule Out Signal Interference

Nearby electrical devices can emit electromagnetic interference disrupting TVs through walls over 5-10 feet away:

  • Power off suspect devices like WiFi routers to test
  • Relocate cordless phones, baby monitors away from TV
  • Add signal filtering if needed – consider an shielded HDMI cable
  • Increase distance between electronics wherever possible

Isolate and suppress potential interference sources. This is especially common on certain models like Toshiba Fire TVs.

12. Replace Severely Damaged Display Panel

If horizontal lines still persist across the entire disjointed screen, physical display damage could be causing havoc:

  • Carefully inspect panel for cracks under good lighting
  • Order replacement Toshiba TV display panel based on model
  • Skilled technician can switch out old and new display units
  • Special equipment needed – very delicate process

Panel repairs remain cost effective fixes over total TV replacement, extending useful lifespan. Gain perspective by checking Toshiba TV reliability against other brands first.

13. Attempt DIY Component-Level Repairs

Those technically inclined can replace specific chips once correctly identified:

  • Learn to diagnose faults down to individual ICs
  • Order replacement kits for amplifier, processor chips
  • Meticulously solder/desolder chips under a microscope – not for novices
  • Use proper grounding and ESD gear to prevent damage

This micro-level troubleshooting demands advanced skills – otherwise leave it to the professionals. But it offers the most complete fixes available.

14. Call Toshiba Support for Repairs

If all else fails, seek assistance from trained Toshiba TV technicians:

  • Contact Toshiba support online or call technicians
  • Detail issue history and troubleshooting steps attempted
  • Ask about feasible component-level repairs
  • Consider affordable extended warranty options

Describe any unusual OSD messages, sounds or smells from TV – every clue helps. Frontline software fixes may resolve issues before needing costly board-level repairs.

So there you have it – the 14 best fixes for frustrating horizontal lines plaguing Toshiba televisions. Start from the simplest solutions like input checks and firmware updates before moving to complex component replacements. I hope this guide gives you confidence to tackle those annoying lines! Let me know if you have any other issues come up.
