How to Fix Vertical Lines on Your Vizio TV Screen

Affiliate Disclaimer: SmartTVs is supported by its audience. If you purchase through links on our site, we may earn an affiliate commission at no additional cost to you.

Written by Jason Lin

Vizio Tv Vertical Lines On Screen

Seeing vertical lines on your Vizio TV is frustrating, but the good news is there are several fixes you can try yourself before paying for expensive repairs. In this comprehensive guide, I’ll walk you through the top 11 solutions to remove vertical lines from Vizio televisions.

What Causes Vertical Lines on Vizio TVs?

Before jumping into the fixes, it helps to understand what causes vertical line issues in the first place:

  • Faulty T-Con board: The T-Con (timing controller) board translates signals and controls pixels on the screen. Issues like loose connectors or damage on this board can trigger vertical lines.
  • Software glitches: Bugs or firmware problems can manifest as line display issues. Resetting or updating the TV often resolves this.
  • Power problems: Inconsistent electricity leading to voltage fluctuations is a culprit. Surge protectors, faulty outlets or wiring can contribute to this.
  • Physical damage: Drops, hits or extreme temperatures may loosen cables and connections resulting in vertical lines or black screens.
  • Bad HDMI cables: Poorly connected or corroded HDMI cables can interfere with signals and cause lines.

With many potential causes, the key is trying different fixes until you isolate the reason.

11 Fixes for Vertical Lines on Your Vizio Television

Follow these tips to remove annoying vertical lines from your Vizio TV:

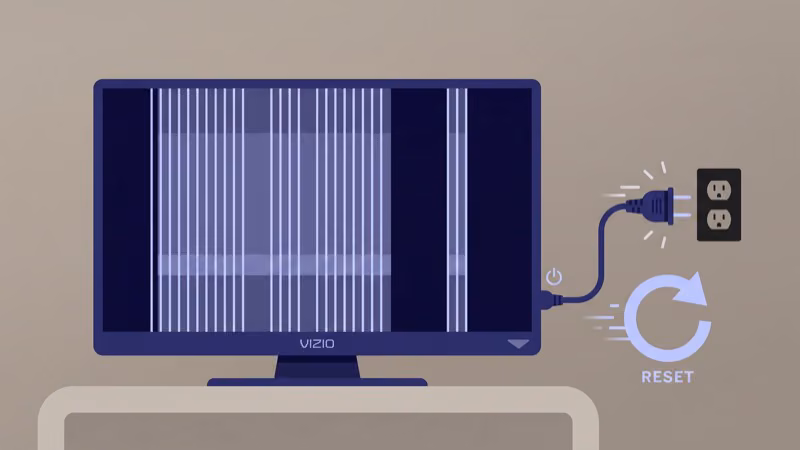

1. Power Cycle the Television

Start with the simple power recycling fix:

  1. Unplug TV from power source.
  2. Press and hold the power button for 10-15 seconds to drain any residual electricity.
  3. Leave unplugged for at least 1 minute, up to an hour for full discharge.
  4. Reconnect and turn back on to reboot fresh.
Unplug The TV

This clears any temporary glitches causing the lines.

2. Try Different Power Sources

If lines reappear after cycling, try different power outlets in other rooms along with different surge protectors.

Voltage inconsistencies can manifest as vertical lines, so this checks for wiring issues.

3. Eliminate Sources of Interference

Nearby gadgets like phones, Bluetooth speakers or baby monitors can cause signal interference. Unplug or remove potential sources within several feet of the TV.

4. Check and Reseat HDMI Cables

Carefully disconnect all HDMI inputs from back of television. Examine ends for dust or damage. If degraded, replace cable.

Re-insert cable ends firmly into ports to ensure full connection. Turn TV back on to check for lines. Retry other HDMI cables individually if the problem persists.

Tcl Tv Hdmi

5. Reset Your Vizio TV

Return television to factory default settings in case software glitches or changes are enabling the lines:

  1. Select Reset & Admin from Settings menu.
  2. Choose Reset TV to Factory Defaults option.
  3. Follow prompts to complete hard reset.
Vizio Tv Reset Tv To Factory Defaults

This erases all customizations but often fixes firmware issues.

6. Update Vizio TV Firmware

Outdated firmware can also be the culprit. Select Check for Updates in the Settings > System menu.

Vizio Tv Check For Updates 1

If available, install newest firmware update as instructed on screen.

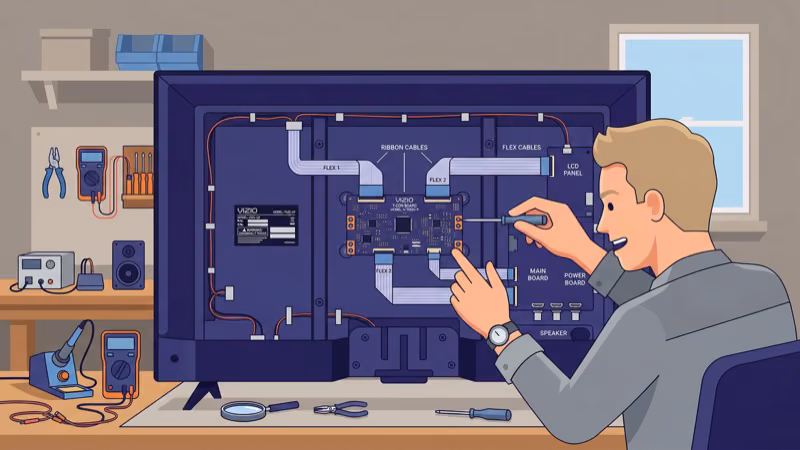

7. Inspect T-Con Board and Ribbon Cables

The T-Con board communicates critical imaging signals. Carefully open back panel to visually check:

  • Ribbon cables connecting T-Con board for secure connections
  • Pins for dust, damage or wear
  • T-Con board itself for blown capacitors or burnt spots

Clean connections and replace damaged cables/boards. Very carefully reseat all internal connections before closing.

8. Use Non-Conductive Tape on T-Con Board

Another T-Con board trick is strategically placing small pieces of tape to block certain pins along ribbon cables. This can isolate faulty signals and restore the image.

Refer to online guides for diagrams on exact taping locations.

9. Adjust Backlight Settings

For TVs with local dimming technology, vertical banding can appear after firmware updates alter tolerances.

Combat this by tweaking backlight, contrast, gamma and other display calibration controls until banding improves.

Vizio Tv More Picture Settings

10. Claim Warranty Coverage

If purchased recently, your Vizio television may still be under manufacturer warranty granting free repair services.

Contact Vizio support with your model details and receipt to inquire about coverage for your vertical line issue.

11. Retain Professional TV Repair

For sets no longer covered or if DIY efforts fail, consider professional television repair:

  • Research highly reviewed local TV repair shops.
  • Describe issue over the phone – an expert can often diagnose problem area.
  • Ask about pricing guidelines for parts replacement. Panel repair starts around $150+.
  • Evaluate costs vs buying a new TV on Black Friday deals.

Though not ideal, repairs remain cheaper than full replacement in many cases.

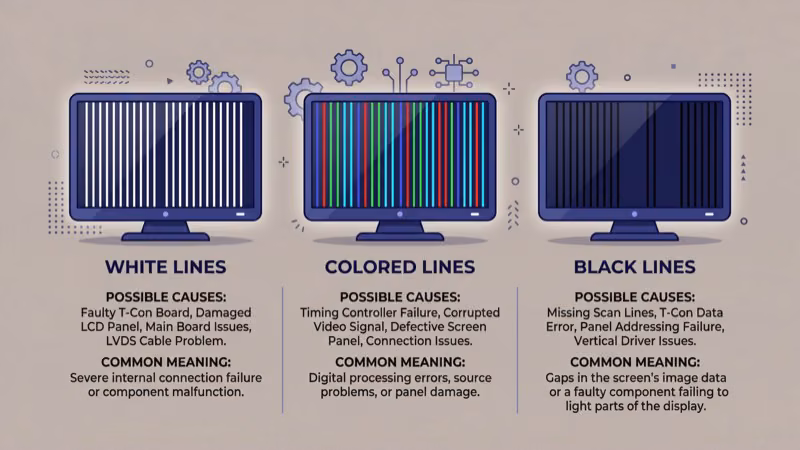

Why Do I See Vertical Colored Lines on My Vizio?

The specific color and nature of the vertical lines can indicate which component has failed:

  • Red, green or blue lines – Faulty LCD panel gate drivers
  • Wide bands after firmware updates – Imperfections with local dimming zones
  • Black vertical lines – Loose tab bonds connecting raw panel drivers
  • Flickering vertical lines – T-Con board ribbon cable/clock signal issues

Key Takeaways on Fixing Vizio TV Vertical Lines:

  • First, power cycle the TV and try different power sources to check for voltage issues.
  • Eliminate interference, firmly reconnect HDMI and other cables.
  • Perform factory reset and firmware updates; customize display settings.
  • Open back panel to clean, reseat and replace damaged T-Con boards, ribbons.
  • Use non-conductive tape to block faulty T-Con board signals as a temporary fix.
  • Retain professionals for advanced repairs if vertical lines persist.

Frequently Asked Questions

What if colored vertical lines still show after factory resetting my Vizio television?

Unfixed colored lines after software resets likely point to physical hardware problems – schedule professional repairs to replace damaged panel driver components.

Why does my Vizio TV have a single thin black vertical line down the display?

A lone black line typically signifies that internal tab bonds connecting LCD pixel drivers have slightly detached. Lightly squeeze plastic bezel edges next to line to reseat bonds. If line temporarily disappears but returns later, use adhesive tape inside to permanently maintain pressure on connectors.

I see vertical lines isolated to just one half of my Vizio TV screen – where should I check?

Vertical lines limited to sections of the screen indicate issues with that area’s T-Con signal controller connections. The T-Con communicates with panels through ribbon cables assigned independently per screen side. Cover pins on partially corrupted cables to strengthen signal from the fully functioning cable pair restoring missing image portions.

Can recent firmware updates introduce vertical banding artifacts?

Yes – with advanced local dimming technology, tweaks to tolerance thresholds in system software upgrades can uncovered previously masked uniformity issues. Minimize newly surfaced vertical banding by carefully tuning backlight intensity, gamma, contrast and other display calibration controls.

What’s the typical vertical line repair cost for my Vizio television?

Depending on specific damaged parts needing replacement, expect $150+ for basic Vizio TV panel repair work by a certified technician. New mainboards often run $200-300+. Compare quotes to current discount prices on new Hisense or Vizio models.


Fixing those irritating vertical lines on your Vizio doesn’t require an immediate expensive LCD panel replacement if you methodically try the troubleshooting tips here first.

In many cases, something as minor as a loose HDMI cable connection is creating false vertical line artifacts.

Work through power cycling, cable checks, calibration changes and DIY electrical repairs before resorting to professional TV repair or replacement. With persistence, you can likely get your Vizio looking good as new again without breaking the bank!
