The Ultimate Guide to Watching VHS Tapes on Modern TVs

January 19, 2024

Affiliate Disclaimer: SmartTvs is supported by its audience. If you purchase through links on our site, we may earn an affiliate commission at no additional cost to you!

Are you nostalgic for those old VHS tapes collecting dust in your basement? Want to relive cherished home videos or classic movies, but unsure how to connect a VCR to new TVs? We’ll explain everything in this comprehensive guide.

Quick Overview

Watching VHS tapes on modern high definition or 4K TVs requires some extra equipment, but it is achievable. Here’s what you need to know:

  • Most new TVs lack the RCA, S-Video, coaxial or other legacy ports used by old VCRs. Analog to digital conversion is necessary.
  • Options include using an HDMI converter, finding a new TV with built-in RCA inputs, or connecting a VCR to a smart TV.
  • Picture quality depends on cables, inputs, TV calibration, and VCR tracking adjustments. Manage expectations – VHS will never look great scaled up to 4K.
  • Replacement VCRs can be purchased cheaply online through sites like eBay and Amazon. Test before purchase.
  • Consider digitizing tapes to DVDs or files as a long-term preservation strategy.

Below we’ll explore these options in detail, along with tips for optimizing picture quality and extending the lifespan of your VHS tape collection.

Why VCRs and New TVs Don’t Get Along

Before the early 2000s, televisions and video devices like VCRs, DVD players and camcorders outputted an analog video signal. This signal encodes the video as an electrical waveform that a CRT tube TV interprets and transforms into a picture.

Around the transition to flat panel TVs like LCD, plasma and OLED, video devices switched to digital signals consisting of binary code. Digital is less prone to interference and degradation over distance, allows higher resolutions like 1080p and 4K, and is easier to compress for streaming.

The catch is that analog and digital video are incompatible without conversion in between. Your old VCR only outputs analog signals like composite video or S-Video. But modern thin TVs lack the specialized ports used by these old connection standards.

Additionally, expecting an old low-resolution format like VHS to scale up nicely to 4K screens is wishful thinking. Built-in digital upscalers can only do so much. The resulting image will likely appear soft and lack fine detail.

But with the right gear, it is possible to watch VHS tapes on a flat screen TV without buying an old CRT set. The following sections explore your options.

Purchase a New TV with RCA Inputs

One straightforward option is to buy a new or recent model TV that retains legacy analog inputs like composite RCA. This allows directly bridging the analog output of a VCR to the display without any intermediary conversion steps.

Many bargain TV models still integrate composite inputs, particularly smaller screen sizes below 50 inches targeted at secondary rooms like kitchens, basements or offices. Composite usually consists of three RCA ports colored yellow, red and white.

Rca Ports

Several brands also offer TVs with component inputs consisting of red, blue, green RCA ports split into separate plugs for video and audio. While still analog, component generally gives a higher quality picture compared to composite.

Red, Blue, Green Rca Ports

💡 Pro Tip: When shopping for a modern TV with analog inputs, don’t assume listings will advertise it. Thoroughly check the ports in rear panel pictures or product manuals.

If this route appeals to you, we suggest targeting 1080p resolution or lower to better match the low-fidelity nature of VHS. Avoid premium models focused on the latest display tech and connectivity capabilities you won’t leverage with a VCR.

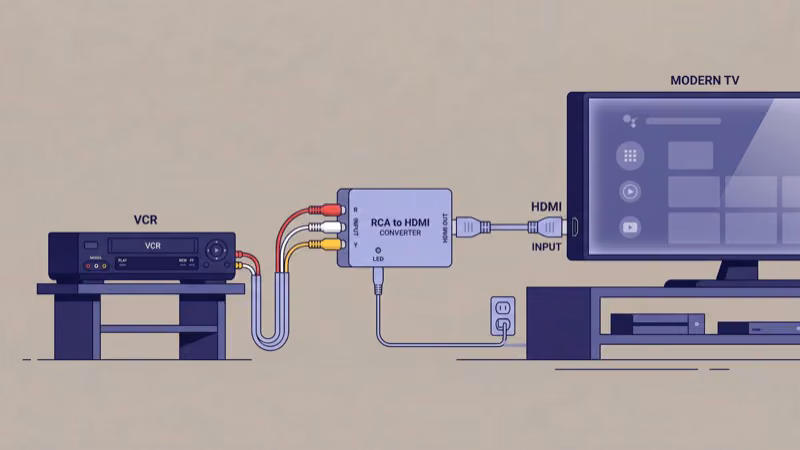

Connect VCR to Smart TV via HDMI Converter

Alternatively, you can purchase a gadget to convert analog outputs to digital. These converter boxes accept composite RCA or S-Video as input, then transform and output the video as HDMI. With the converted digital signal, connecting to any modern television is straightforward.

Rca To Hdmi

Converter boxes are sold by several brands for under $50 on sites like Amazon and Best Buy. They require external power and include options like upscaling SD footage to 720p or 1080p resolution. Using HDMI preserves quality avoided by other conversion methods too.

💡 Pro Tip: Opt for a converter claiming low latency. Poorly designed units can introduce a delayed response between a VHS tape’s video and audio that quickly gets annoying.

On the smart TV side, be sure to change settings like aspect ratio and zoom to correctly fit and display the 4:3 analog video outputted by the VCR recorder. Review your TV manual for instructions specific to your model.

  • Composite & S-Video to HDMI converter to enable watching VHS on new TVs*

Connect to HDTV Via Analog Pass-Through Ports

Some smart TVs integrate a special analog passthrough port allowing hookup of older video gear. This acts as an intermediary between analog low fidelity signals and HDMI without requiring a separate powered brick converter box.

Implementations of analog passthrough vary by television brand and model line, but usually consist of either:

  • 3.5mm Port: A standard 3.5mm audio jack that works alongside a short adapter cable shipped with the TV, splitting off into three RCA ends for video and stereo audio.
  • AV Multi Port: A single specialized port with proprietary shape that connects to an interface cable bundled with the TV integrating 3.5mm plugs for input alongside HDMI for output to the screen.

💡 Pro Tip: Don’t assume your smart TV includes analog passthrough; always thoroughly check input specs before purchase. Some brands exclude legacy ports even on entry-level units.

For best results, calibrate picture settings after connecting your VCR. Enable game mode to reduce input lag, and switch preset picture modes to accurately convey the 4:3 analog source signal without overscan or geometric distortion.

Using HDMI ARC to Simplify Cabling

If your television includes HDMI ARC support, here’s an expert trick that can clean up cabling:

  1. Connect VCR composite cables to the TV directly via composite, S-Video or HDMI converter.
  2. Separately connect soundbar HDMI cable to HDMI ARC port on TV instead of directly wiring sound system to converter box.
Hdmi Arc

This leverages HDMI ARC (audio return channel) to pass along analog stereo audio from the VCR to the external speakers via the TV’s built-in switcher. Reduces cabling while allowing you to continue using a modern standalone sound system.

Improve Picture Quality from VHS Sources

Don’t expect an overly sharp, detailed image from VHS tapes regardless of connection method. At best these communicate a rough480i/480p standard definition signal compared to today’s HD and 4K.

Pre-recorded VHS tapes topped out around 250 lines of horizontal resolution. Home camcorder recordings often deliver far less depending on tape quality, tracking calibration and recording device upkeep.

But you can take steps to optimize picture quality:

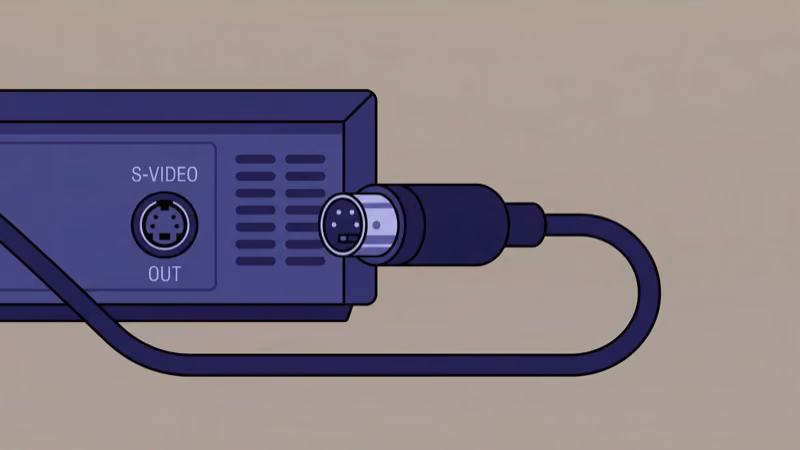

  • Use S-Video Over Composite: The extra pins supply a dedicated luminance channel avoiding noise from composite’s single bundled line.
  • Adjust Tracking: Calibration ensures optimal tape head alignment crucial for minimizing video artifacts.
  • Clean Tape Heads: Accumulated dust and dirt degrades signal. Use cleaning cassette or isopropyl alcohol with care.
  • Upgrade Cables: Higher quality shielded cables better preserve analog signal between devices.
  • Calibrate HDTV Picture Profile: Optimize settings like brightness, contrast, sharpness. Enable 4:3 display ratio for correct geometry.

Realistically the ceiling for VHS quality will remain low. But these tweaks should help you get the most watchable image possible from aging tapes.

Where to Buy VCRs in 2024

If you lack a working VCR, plenty of options exist for purchasing a replacement both online and locally:

Thrift Stores Goodwill and Salvation Army routinely receive vintage VCR donations. Models start around $10-15 but may require cleaning or repair. Test before buying.

eBay eBay sellers offer refurbished and used VCRs at varying quality levels. Expect to pay $40-60+ for a deck verified as working from a highly rated seller.

Amazon Listings do pop up on Amazon from time to time for new old stock VCRs, albeit at collectible prices of $100+. Use seller reviews to ascertain legitimacy before purchasing.

Electronics Repair Shops Local TV repair stores can fix many issues with VCRs deemed broken. Cost varies depending on parts and complexity, so get quotes.

Classifieds (Craigslist, Facebook) People often give away or sell cheap VCRs on sites like Craigslist and Facebook Marketplace. Just be diligent testing functionality before money changes hands.

When evaluating used VCRs, carefully inspect condition, stick a sacrificial tape inside, press play and observe results. Focus on signs of damage, script errors, jammed gears, image artifacts and fuzzy playback. This should help avoid disappointments or unexpectedly expensive repairs down the line.

Preserve Tapes Via Digital Archiving

No home media format lasts forever. The fragile magnetic tape inside a VHS cassette degrades over time, eventually losing precious recordings. Plus tapes risk damage from high heat, moisture, dust, sunlight exposure or rough handling.

As a long term strategy for preservation, consider digitizing your VHS collection to digital files saved locally or in the cloud. This future proofs irreplaceable home videos, personal events, family memories and favorite movies against degradation or hardware failures down the line.

Three common methods exist for migrating VHS to digital:

  • VHS to DVD Recorders: An economical “do it yourself” tactic, copying tape content to write-once DVD-R discs playable on computers and DVD players.

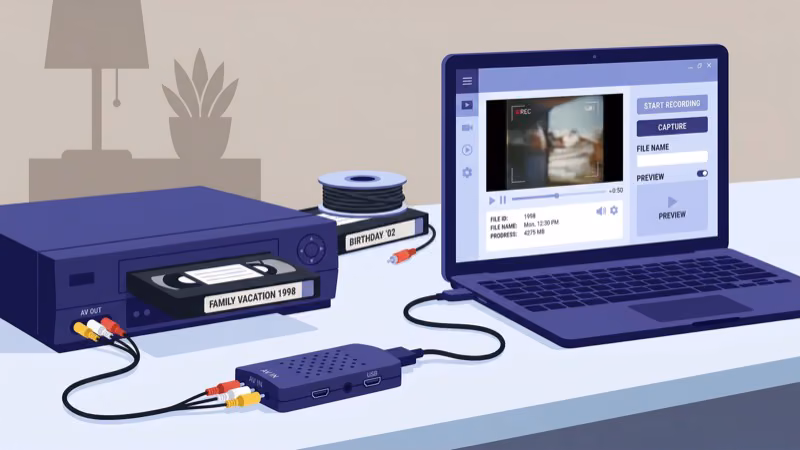

  • DVR Capture Devices: Gadgets that plug into PCs via USB to record video from external devices like VCRs to files for easy editing, sharing and backup. Includes software.
  • Professional Duplication Services: Companies with commercial grade equipment can archive tapes to files or optical discs en masse by securely mailing them your collection.

We recommend the professional service path for best results and time savings archiving a large VHS library. Cost is around $15 per 2 hour tape converted to digital, depending on turnaround speed. Your tapes are safeguarded in transit and backed up at industrial standards – crucial for irreplaceable material.

Just be sure to specifically request DVD data discs or USB drives with actual video files included, not just low quality DVD video discs that won’t hold up long term. Transcoding to widely supported mp4 or mkv future proofs access across devices and apps.

Frequently Asked Questions

Do new TVs support RCA or other legacy connections?

A handful of budget TV models retain composite RCA ports. But the vast majority lack analog inputs, requiring converters like HDMI, coaxial or analog passthrough adapters. Always thoroughly check input specs before purchase.

Can I improve VHS quality on modern TVs?

VHS resolution pales compared to 4K. But using the highest quality cables between devices, manually adjusting VCR tracking, enabling 4:3 display ratio, and calibrating HDTV picture modes can help optimize watchability as much as practical.

What gear do I need to connect a VCR?

You’ll need cables matching inputs of your TV, plus either A) HDMI converter if your television completely lacks legacy ports, B) analog passthrough adapter bundled with certain smart TVs, or C) a new budget TV still integrating legacy composite inputs.

What is the most future proof way to preserve VHS tapes?

To guard against tape degradation and equipment failures, consider professionally duplicating tapes to archival quality digital video files stored on DVD data discs or hard drives. This also enables easy sharing.

Where can I buy a VCR to play my tapes?

VCRs are still readily found online via eBay and Amazon, as well as thrift stores. Local TV repair shops also sometimes carry inventory. Expect to pay between $15 for an untested unit or up to $100+ for new old stock gear verified as working.

We hope this guide covered everything required to successfully watch your old VHS tapes on modern televisions! Let us know if you have any other questions.
